Series Compack Machines

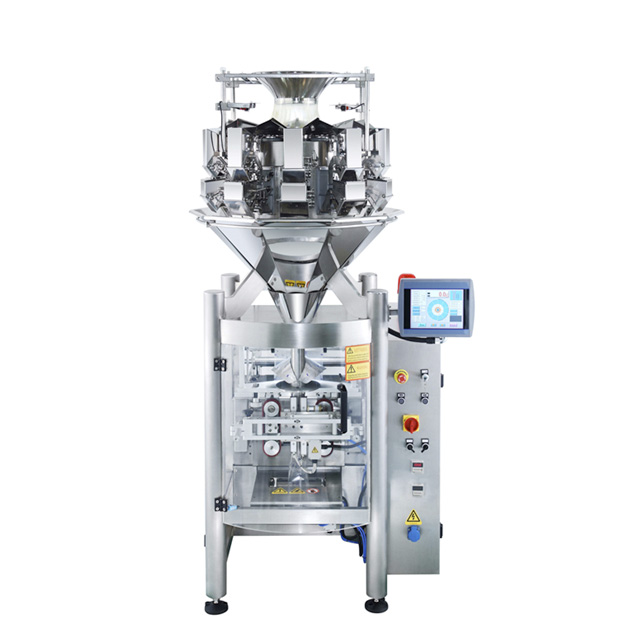

10-head 0.8L Compack Machine – 1040a08
Características
Material: Sus 304 stainless steel
Horizontal sealing way: Pneumatic
Film pulling way: Servo drive
Vertical sealing type: Single seal/Double seal
Max.width of film: 400mm
Film thickness: 0.04-0.12mm
Material of film: Composite film/ PE film
Bag width: 60-190mm
Max.length of bag: 230mm
Max. forming speed: 60 bag/min
Bag type: Pillow bag/Gusset bag
Compressed air consume: 0.3 m³/min 0.6pa
Power: 5 kw
Voltage: 220 V
Size: 1550×1290×2220mm
Weight: 765 kg
Componentes Electrónicos
Material: Sus 304 stainless steel
