Material: Sus 304 stainless steel

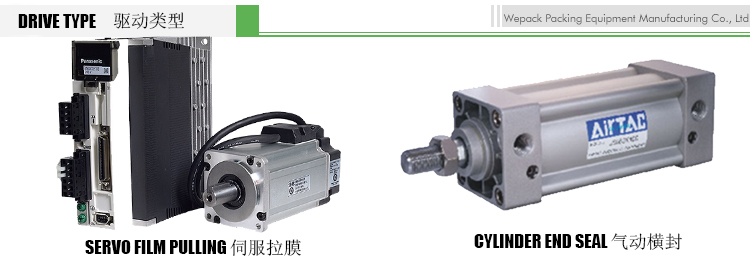

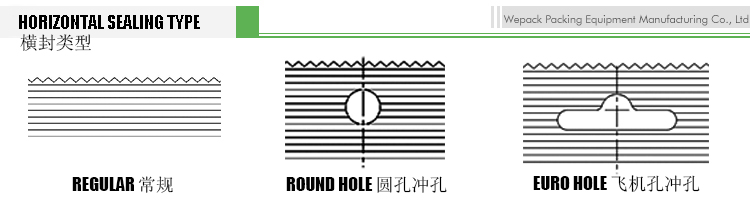

Horizontal sealing way: Pneumatic
Film pulling way: Servo drive

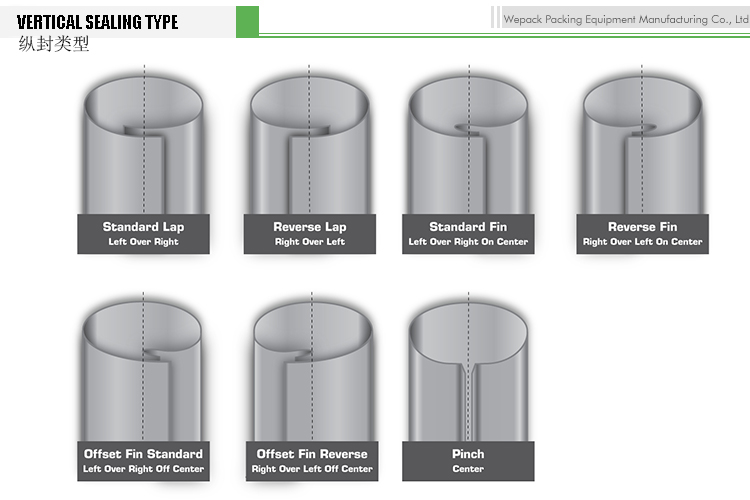

Vertical sealing type: Single seal/Double seal
Max.width of film: 620mm
Film thickness: 0.04-0.12mm
Material of film: Composite film/ PE film

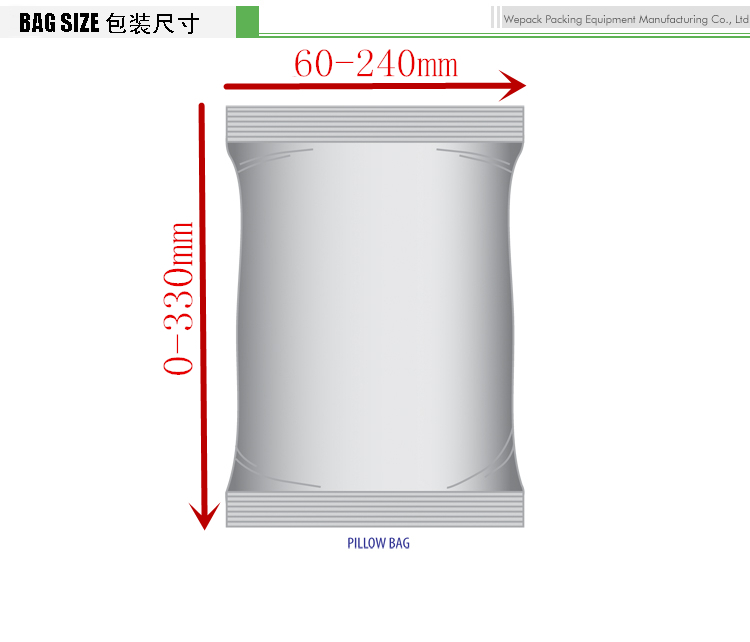

Bag width: 60-300mm
Max.length of bag: 400mm
Max. forming speed: 20 bag/min

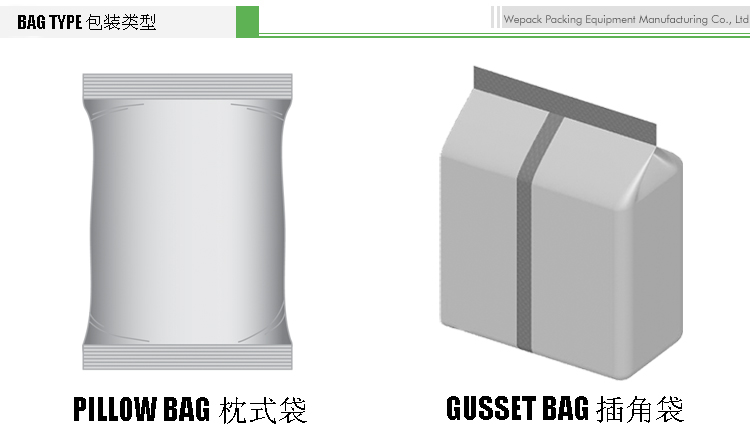

Bag type: Pillow bag/Gusset bag
Compressed air consume: 0.3 m³/min 0.6pa
Power: 5 kw
Voltage: 220 V
Size: 2000×1525×2420mm
Weight: 850kg
