VFFS Packing Machines

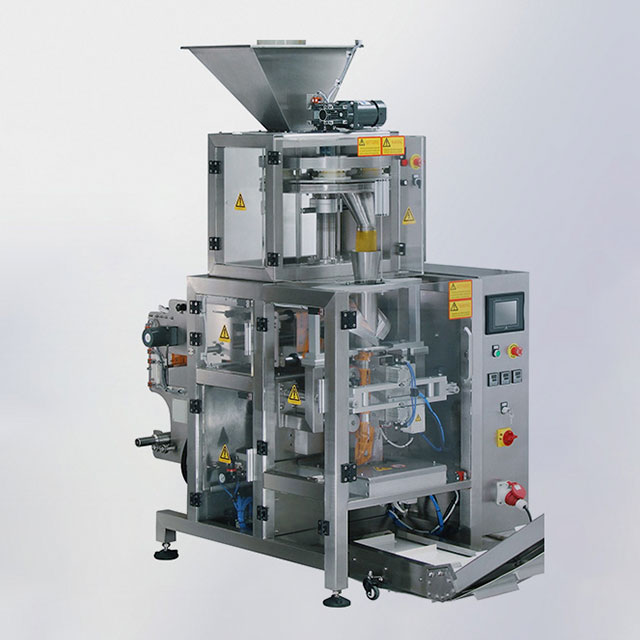

ATV-CM (Cup Filler)
ATV-200S
Material: 304 Stainless Steel
End sealing way: Pneumatic
Packing speed: 60 bag/min
Film pulling way: Servo drive
Vertical sealing type: Single seal \ Double seal
Max.width of film: 400mm
Film thickness: 0.04~0.12mm
Material of film: Composite film / PE film
Width of bag: 60-190mm
length of bag: 0-230mm
Bag type: Pillow bag
Compressed air consume: 0.3m³/min 0.6pa
Power: 4 kw
Voltage: 220 V
ATV-200D
Material: 304 Stainless Steel
End sealing way: Servo drive
Packing speed: 90 bag/min
Film pulling way: Servo drive
Vertical sealing type: Single seal \ Double seal
Max.width of film: 400mm
Film thickness: 0.04~0.12mm
Material of film: Composite film / PE film
Width of bag: 60-190mm
length of bag: 0-230mm
Bag type: Pillow bag
Compressed air consume: 0.3m³/min 0.6pa
Power: 4 kw
Voltage: 220 V
ATV-300S
Material: 304 Stainless Steel
End sealing way: Pneumatic
Packing speed: 60 bag/min
Film pulling way: Servo drive
Vertical sealing type: Single seal \ Double seal
Max.width of film: 620mm
Film thickness: 0.04~0.12mm
Material of film: Composite film / PE film
Width of bag: 60-300mm
length of bag: 0-330mm
Bag type: Pillow bag
Compressed air consume: 0.3m³/min 0.6pa
Power: 4 kw
Voltage: 220 V
ATV-300D
Material: 304 Stainless Steel
End sealing way: Servo drive
Packing speed: 90 bag/min
Film pulling way: Servo drive
Vertical sealing type: Single seal \ Double seal
Max.width of film: 620mm
Film thickness: 0.04~0.12mm
Material of film: Composite film / PE film
Width of bag: 60-300mm
length of bag: 0-330mm
Bag type: Pillow bag
Compressed air consume: 0.3m³/min 0.6pa
Power: 4 kw
Voltage: 220 V
CUP FILLER WP-CM700
Material: SUS304
Cup volumn: 100-700ml
Cups Qty.: 4
CUP FILLER WP-CM3000
Material: SUS304
Cup volumn: 200-3000ml
Cups Qty.: 4
Componentes Electrónicos
Material: Sus 304 stainless steel
