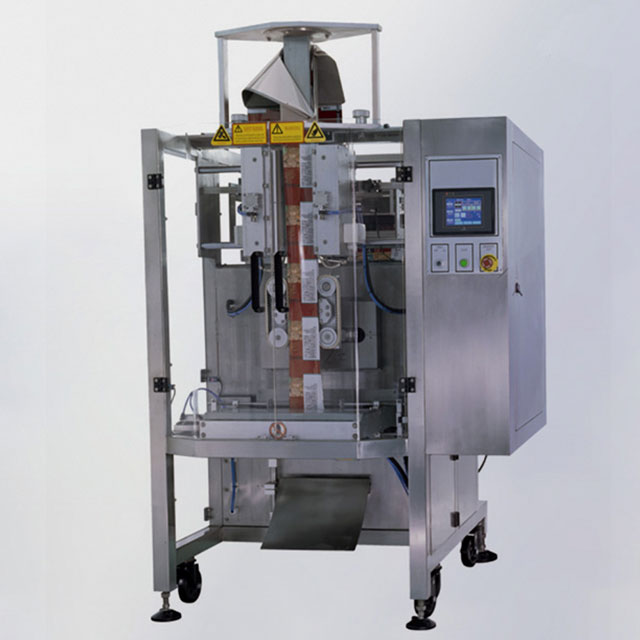

VFFS Packing Machines
ATV-F (Quad Seal)
ATV-320F
Material: 304 Stainless Steel
Horizontal sealing: Servo drive
Film pulling: Qual seal
Vertical sealing type: Single seal/Double seal
Width of film: 260-320mm
Max.length of bag: 230mm
Forming speed: max. 50 bag/min
Film thickness: 0.04~0.12mm
Material of film: Composite film
Bag type: Qual seal bag
Compressed air consume: 0.3m³/min, 0.6pa
Power: 5 kw
Voltage: 220v, 50hz(60hz)
ATV-430F
Material: 304 Stainless Steel
Horizontal sealing: Servo drive
Film pulling: Qual seal
Vertical sealing type: Single seal/Double seal
Width of film: 260-420mm
Max.length of bag: 300mm
Forming speed: max. 50 bag/min
Film thickness: 0.04~0.12mm
Material of film: Composite film
Bag type: Qual seal bag
Compressed air consume: 0.3m³/min, 0.6pa
Power: 5 kw
Voltage: 220v, 50hz(60hz)
ATV-520F
Material: 304 Stainless Steel
Horizontal sealing: Servo drive
Film pulling: Qual seal
Vertical sealing type: Single seal/Double seal
Width of film: 280-520mm
Max.length of bag: 350mm
Forming speed: max. 50 bag/min
Film thickness: 0.04~0.12mm
Material of film: Composite film
Bag type: Qual seal bag
Compressed air consume: 0.3m³/min, 0.6pa
Power: 5 kw
Voltage: 220v, 50hz(60hz)
Componentes Electrónicos
Material: Sus 304 stainless steel
