Series Compack Machines

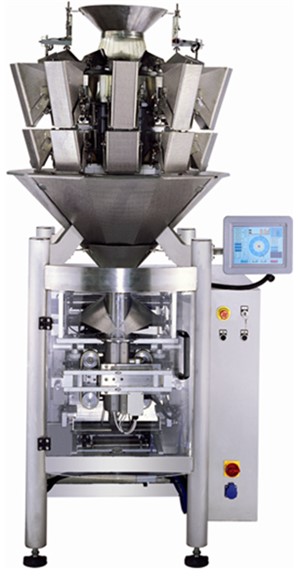

400 TYPE & 10HEAD 1L COMBINE MACHINE
Details
Screen: 10.4 inch touch screen
Weigh Head Qty: 10
Weigh Head Layer: Double
Weigh Head type: 1 liter single opening
Max Weight: 1kg
Horizontal Seal power: Cylinder
Film Pulling Power: servo motor
Vertical seal power: single seal/double seal
Film Material: Composite film/PE film
Film Thickness: 0.04-0.12mmMax.
Film Width: 400mmBag Width: 60-190mmMax.
Film Reel: 400mm
Bag Length: 230mm
Bag type: Pillow bag/Gusset bagMax.
Speed: 60bag/min
Air consumption:0.5 m3/min 0.6pa
Power: 4.5kw
Voltage: 220v
Package Size(mm): 1550x1290x2220
Gross Weight: 765kg
Features
Material: Sus 304 stainless steel
This machine is especially suitable for the factories with small and low height but high cleanliness requirements. It is widely used to quantitatively package all kinds of the material which are in granular, bulk, globular, and small strip. (such as chinese medicinal deconction pieces, puffed food, nuts, candies, gummy candy, seeds, peanuts, dry fruit, pet food, hardware.)
